530-320

CALIBRO A CORSOIO MM 150

Codice: I4974

Disponibilità: Non disponibile

Codice del produttore: 530-320

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€131,40

Calibro corsoio superfici md 0-150

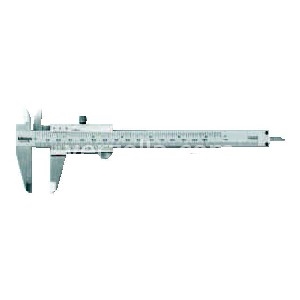

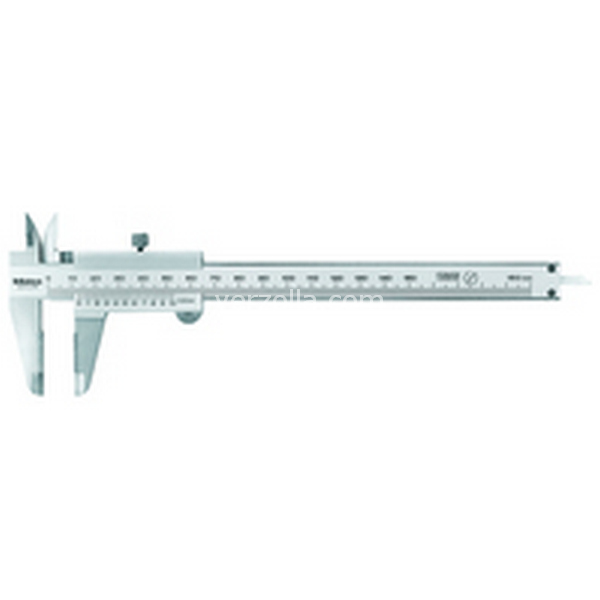

CALIBRO A CORSOIO 150 MM

Con superfici di misura in metallo duro.Calibro e corsoio in acciaio inossidabile temprato.Scala e nonio cromati opachi.Guide rialzate.

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	0-150
Graduation	0.05 mm
Accuracy	±0,05 mm
Inch-Metric	Metric
Depth bar	flat

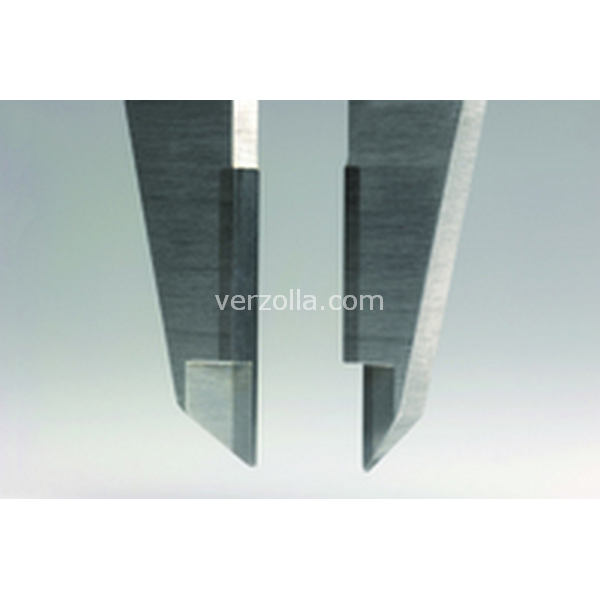

Functions	Carbide-tipped jaws for outside measurement
L	229
A	40
B	21
C	17
D	16
Delivered	In soft case
Mass	145
Article Type	Product
Articlegroup	20
Articlegroup Subgroup	2000
relevant for catalog	International
Features	• Basic design but with carbide-faced outside jaws for enhanced wear resistance.• Can measure outside and inside diameter (OD and ID), depth, and steps.• The small vernier face angle (14å¡) provides easy reading.• Clamping screw on the slider.
