500-501-10

CALIBRO DIGITALE MM 600

Codice: I9340

Disponibilità: Non disponibile

Codice del produttore: 500-501-10

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€995,40

Scarica PDF

Descrizione

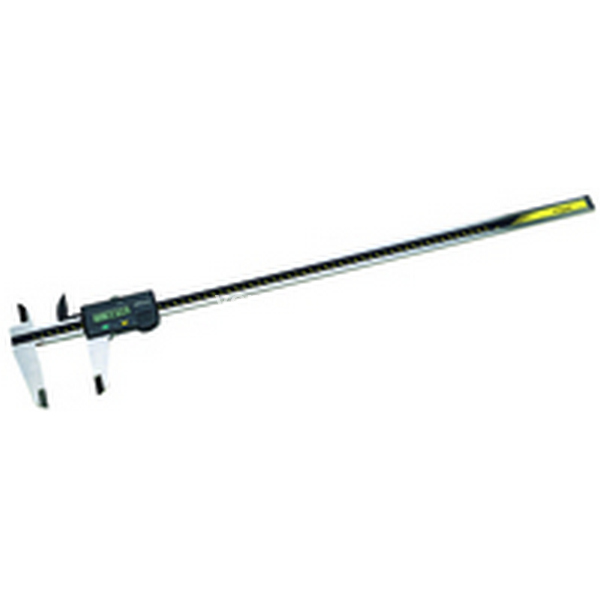

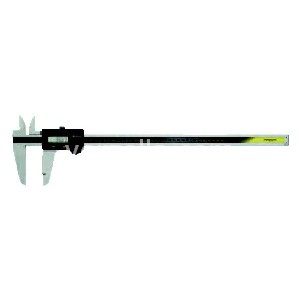

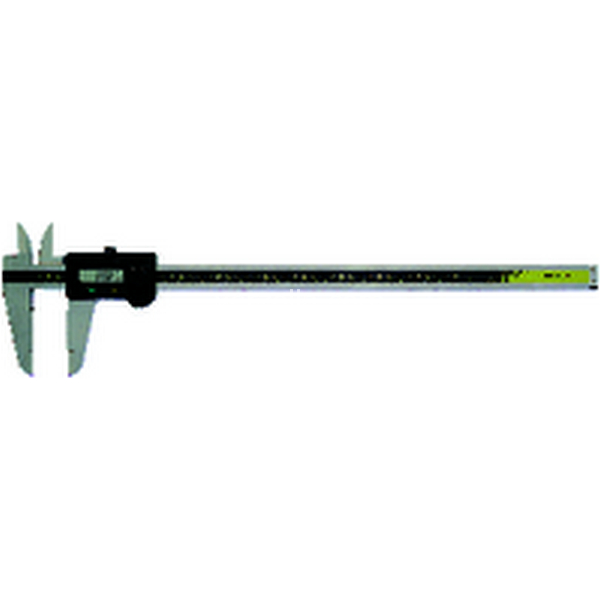

Calibro corsoio Digimatic Absolute 0-600

Dettagli

CALIBRO ELETTRONICO ABS

Calibri Digimatic per grandi campi di misuraModelli DigimaticIn esecuzione robusta per grandi campi di misura (fino a 1000mm).Sistema ABSOLUTE

Digital/Analog	Digital
Accuracy	≤ 600 mm : ±0,05 mm ≤ 1000 mm : ±0,07 mm (excluding quantizing error)
Range	0-600
Digital step	0,01 mm
Max. response speed	Unlimited
ORIGIN (ABS-Zero)	Yes
Zero/abs	Yes
On/off	Yes
Low voltage alarm	Yes
Inch-Metric	Metric
Data output	Yes
Battery life	approx. 20000 hours
L	780
A	90
B	47
C	38
D	25
Display	LCD; Character Height 10 mm
Delivered	In a case, including 1 battery
Mass	1350
Article Type	Product
Articlegroup	22
Articlegroup Subgroup	2200
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Large and clear LCD readout. • The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute (ABS) mode for displaying the true position from the origin (usually the jaws-closed point). • Data Hold Unit is optional. Conventional Digital Measurement Found image element but no 'oid' attribute set ABSOLUTE Digimatic Measurement Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting. Found image element but no 'oid' attribute set
Imes relevant (1=yes)	1
Fabory relevant	ja
Fabory Material ID	M5201500501
Fabory Group ID	M5201
Fabory Section	4060602
