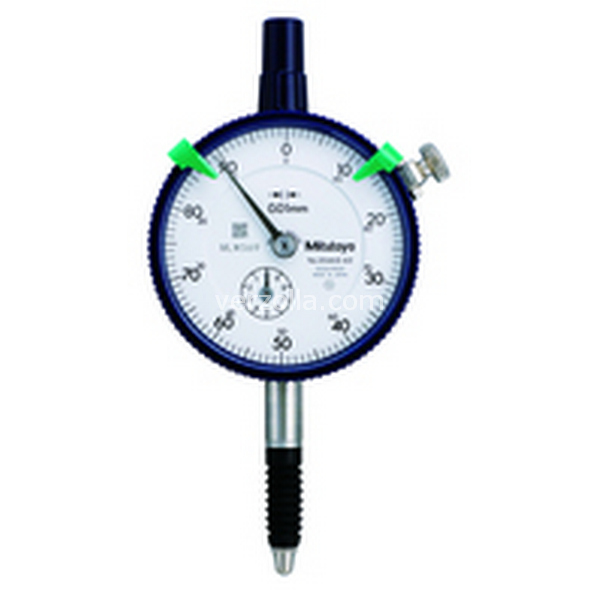

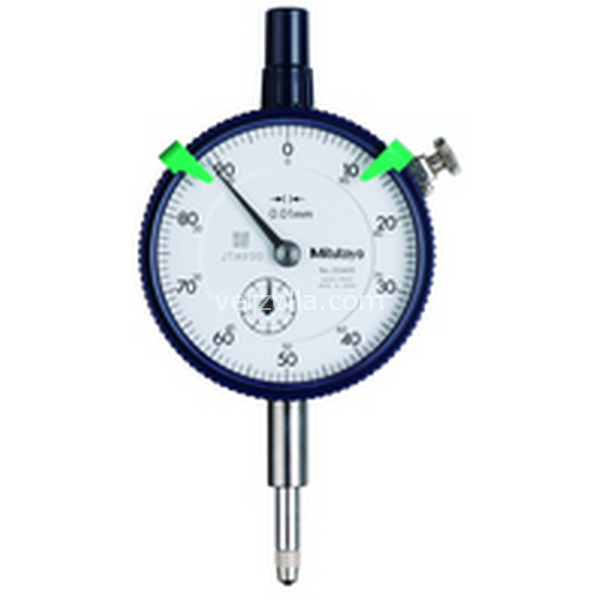

Comparatore diam.57 mm 0,01 corsa 10 mm
Dettagli
COMPARATORE 0,01/10MM
Modello standard metrico, ghiera Ø 57 mm, campo 10 mm, graduazione 0.01 mm
No. with Lug back plate | 2046S-60 |
Range | 10 |
Range per rev. | 1 mm |
Range | 13 |
Measuringforcemin/ max | 0.4 - 2.5 N |
Graduation | 0.01 mm |
fe | 12 |
Scale | 0-100 (100-0) |
Continuous dial | Yes |
IP64 | Yes |
Measuring force | 0.4 - 2.5 |
Inch-Metric | Metric |
Repeatability | 5 µm |
Repeatability | 3 |
Mass lug/plain | 146/137 |
Any 1/10revolution | 5 |
Any 1revolution | 10 |
Any 1/2revolution | 9 |
Hysteresis error | 3 |
A | 48,8 |
B | 70 |
C | 57 |
D | 17,7 |
E | 20 |
f | 12,3 |
G | 29,2 |
H | 52 |
I | 7,6 |
fu | 3 |
fges | 15 |
