1160T (ex1160)

COMPARATORE 5MM

Codice: N5979

Disponibilità: Non disponibile

Codice del produttore: 1160T

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

1160T

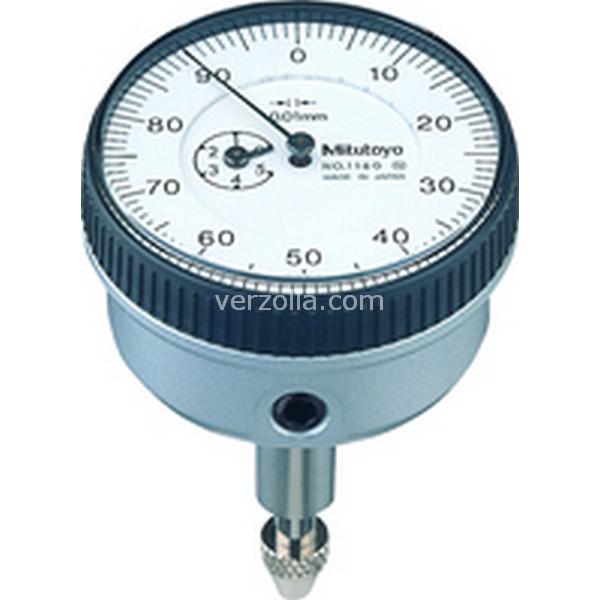

Comparatore analogico con ghiera ø 39mm.

Range	5
Range	18
Range per rev.	1 mm
Measuringforcemin/ max	0,4 - 1,4 N
Graduation	0.01 mm
Scale	0-100
Continuous dial	Yes
Measuring force	0,4 - 1,4
Inch-Metric	Metric
Repeatability	3
Any 1/10revolution	7
Any 1revolution	12
Any 1/2revolution	11
Hysteresis error	4
A	40
B	22,1
C	35
E	22
f	25
G	13,8
fe	15
fu	4
H	43,3
fges	19
Delivered	Delivered with factory certificate
Article Type	Product
Articlegroup	40
Articlegroup Subgroup	4000
Mass	80
relevant for catalog	International
Export-Web (1=yes)	1
Features	Mitutoyo's back plunger type dial indicators are built with the measuring plunger (or spindle) protruding from the back of the body instead of the side. This type of indicator offers the same precision and durability as all other Mitutoyo dial indicators, and operates very effectively with optional holding bars.• Back plunger type dial gauges are suitable for mounting onto levelling machine tool tables or inpsection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see.
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
