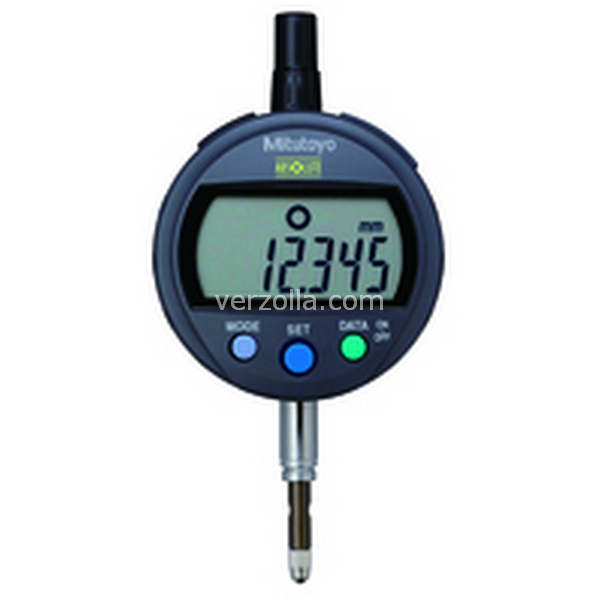

543-394B

COMPARATORE DIGITALE 12MM

Codice: P4359

Disponibilità: Non disponibile

Codice del produttore: 543-394B

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Scarica PDF

Descrizione

COMPARAT.DIGIT. ABS 0,00

No.Lug back plate	543-394
Range	12,7
Accuracy	Refer to the list of specifications (excluding quantizing error)
Digital step	0,001/0,01 mm
Remarks	Low force
Scale	Capacitance type, ABSOLUTE linear encoder
Stem Ø	8 mm
Max. response speed	Unlimited
Contact point	Carbide ball, thread M 2.5 x 0.45 mm
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Accuracy	0,003 mm
Zero/abs	Yes
GO/±NG judgement	Yes
Digimatic data output	Yes
On/off	Yes
Data/hold	Yes
Lock function	Yes
Measuring force	≤ 0,4-0,7
Inch-Metric	Metric
Power supply	1 battery SR-44
Battery life	approx. 7000 hours
Preset	Yes
Counting direction switchable	Yes
Calculation function	Yes
Measuring force	Display
LCD character height 11 mm Rotatable 330°	Article Type
Product	Articlegroup
42	Articlegroup Subgroup
4200	Mass
170	Selectable resolution*
Yes	relevant for catalog
International	Export-Web (1=yes)
1	Features
• with Plain back, low measuring force. • As compact as standard Series 2 dial indicators. • Large, easy to read LCD. • SET key: Allows the display to be Zero-Set at any spindle position for comparison movements. This switch will also allow return to the absolute coordinate and display of the true position from the origin point. • GO/å±NG judgement can be performed by setting upper and lower tolerance limits. The judgement result (GO/å±NG) can be displayed in full size characters. • Simple calculation by a user-definable factor using the formula Ax ('x' is spindle displacement) can be performed. • The measuring direction can be revesed. • Unlimited reponse speed eliminates spindle over-speed errors. • The indicator face can be rotated 330å¡ to an appropiate angle for easy reading. Conventional Digital Measurement Found image element but no 'oid' attribute set ABSOLUTE Digimatic Measurement Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting. Found image element but no 'oid' attribute set	Imes relevant (1=yes)
