543-474B

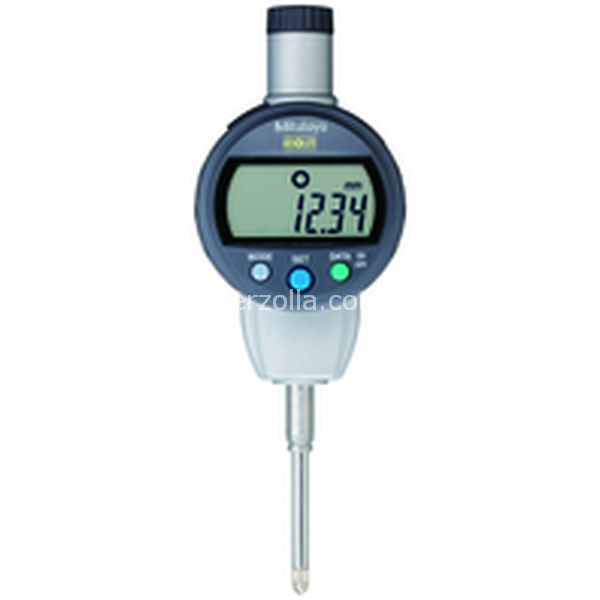

COMPARATORE DIGITALE 50MM

Codice: P1896

Disponibilità: Non disponibile

Codice del produttore: 543-474B

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

COMPARAT.DIGIT. ABS 0,01

Range	25,4
Accuracy	Refer to the list of specifications (excluding quantizing error)
Digital step	0,01 mm
Scale	Capacitance type, ABSOLUTE linear encoder
Max. response speed	Unlimited
Stem Ø	8 mm
Contact point	Carbide ball, thread M 2.5 x 0.45 mm
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Accuracy	0,02 mm
Zero/abs	Yes
GO/±NG judgement	Yes
Digimatic data output	Yes
On/off	Yes
Data/hold	Yes
Lock function	Yes
Measuring force	≤ 1,8
Inch-Metric	Metric
Power supply	1 battery SR-44
Battery life	approx. 7000 hours
Preset	Yes
Counting direction switchable	Yes
Calculation function	Yes
Display	LCD character height 11 mm Rotatable 330°
Article Type	Product
Articlegroup	42
Articlegroup Subgroup	4200
Mass	190
Selectable resolution*	Yes
relevant for catalog	International
Export-Web (1=yes)	1
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
