543-494B

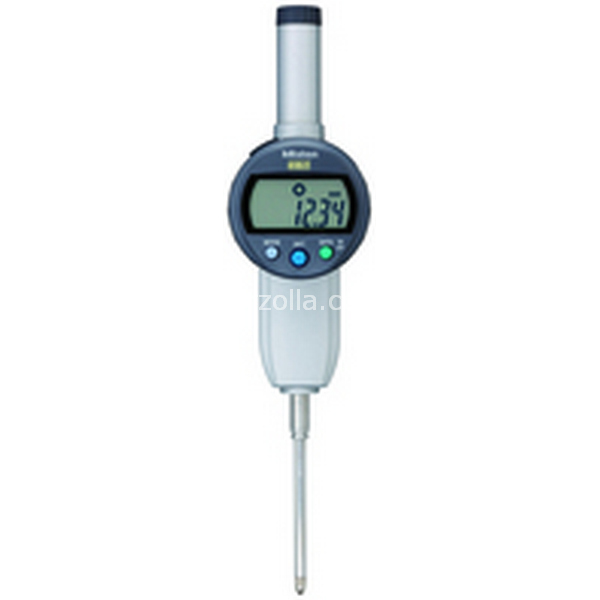

COMPARATORE DIGITALE 50MM

Codice: S8533

Disponibilità: Non disponibile

Codice del produttore: 543-494B

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Scarica PDF

Descrizione

COMPARAT.DIGIT. ABS 0,01

Range	50,8
Accuracy	Refer to the list of specifications (excluding quantizing error)
Digital step	0,01 mm
Scale	Capacitance type, ABSOLUTE linear encoder
Max. response speed	Unlimited
Stem Ø	8 mm
Contact point	Carbide ball, thread M 2.5 x 0.45 mm
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Accuracy	0,04 mm
Zero/abs	Yes
GO/±NG judgement	Yes
Digimatic data output	Yes
On/off	Yes
Data/hold	Yes
Lock function	Yes
Measuring force	≤ 2,3
Inch-Metric	Metric
Power supply	1 battery SR-44
Battery life	approx. 7000 hours
Preset	Yes
Counting direction switchable	Yes
Calculation function	Yes
Display	LCD character height 11 mm Rotatable 330°
Article Type	Product
Articlegroup	42
Articlegroup Subgroup	4200
Mass	260
Selectable resolution*	Yes
relevant for catalog	International
Export-Web (1=yes)	1
Features	• with Plain back. • As compact as standard Series 2 dial indicators. • Large, easy to read LCD. • SET key: Allows the display to be Zero-Set at any spindle position for comparison movements. This switch will also allow return to the absolute coordinate and display of the true position from the origin point. • GO/å±NG judgement can be performed by setting upper and lower tolerance limits. The judgement result (GO/å±NG) can be displayed in full size characters. • Simple calculation by a user-definable factor using the formula Ax ('x' is spindle displacement) can be performed. • The measuring direction can be revesed. • Unlimited reponse speed eliminates spindle over-speed errors. • The indicator face can be rotated 330å¡ to an appropiate angle for easy reading. Conventional Digital Measurement Found image element but no 'oid' attribute set ABSOLUTE Digimatic Measurement Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting. Found image element but no 'oid' attribute set
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
