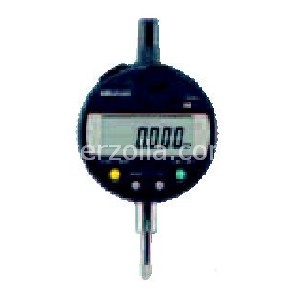

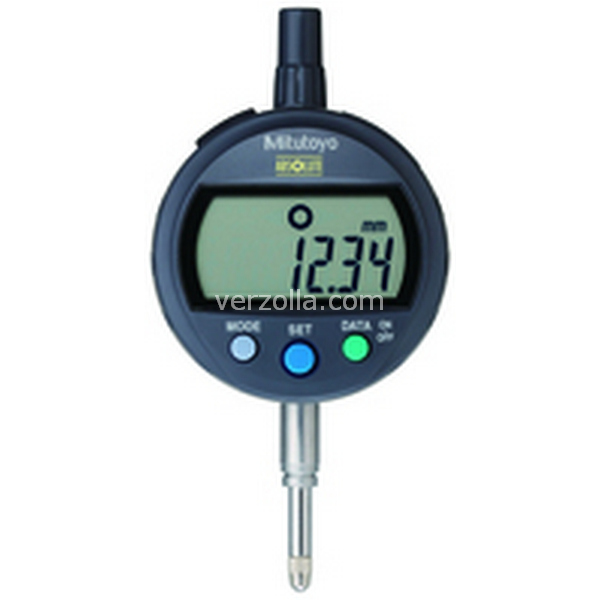

543-400B (EX.543-270B)

COMPARATORE DIGITALE

Codice: D7135

Disponibilità: Non disponibile

Codice del produttore: 543-400B

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Comparatore id-c 0,01 Absolute Digimatic corsa 12 mm

COMPARAT.DIGIT. ABS 0,01

No.Lug back plate	543-400
Range	12,7
Accuracy	Refer to the list of specifications (excluding quantizing error)
Digital step	0,01 mm
Scale	Capacitance type, ABSOLUTE linear encoder
Stem Ø	8 mm
Max. response speed	Unlimited
Contact point	Carbide ball, thread M 2.5 x 0.45 mm
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Accuracy	0,02 mm
Zero/abs	Yes
GO/±NG judgement	Yes
Digimatic data output	Yes
On/off	Yes
Data/hold	Yes
Lock function	Yes
Measuring force	≤ 0,9
Inch-Metric	Metric
Power supply	1 battery SR-44
Battery life	approx. 7000 hours
Preset	Yes
Counting direction switchable	Yes
Calculation function	Yes
Measuring force	Display
LCD character height 11 mm Rotatable 330°	Article Type
Product	Articlegroup
42	Articlegroup Subgroup
4200	Mass
170	Selectable resolution*
Yes	relevant for catalog
International	Export-Web (1=yes)
1	Imes relevant (1=yes)
1	Brammer relevant (1=yes)
