575-121

COMPARATORE DIGITALE

Codice: D7159

Disponibilità: Non disponibile

Codice del produttore: 575-121

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€228,60

Scarica PDF

Descrizione

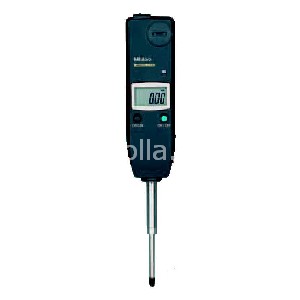

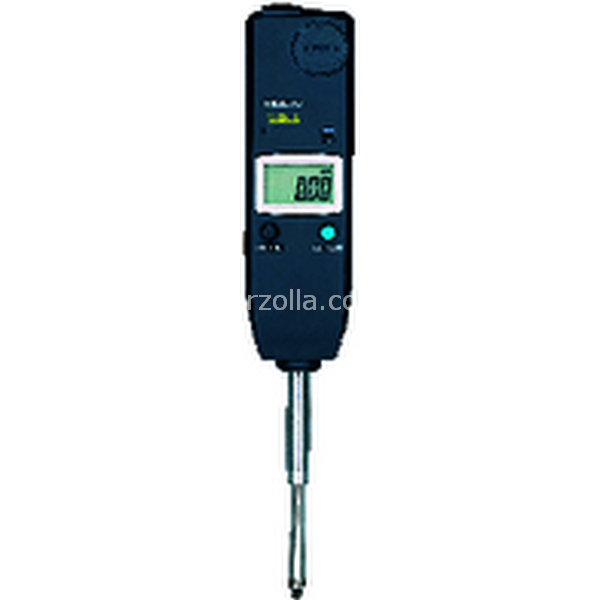

Comparatore id-u 0,01 Absolute Digimatic corsa 25 mm

Dettagli

COMP. "DIGIMATIC" ABS ID

Comparatore ID-U ABSOLUTE "DIGIMATIC"La posizione zero viene impostata una sola volta e memorizzata fino alla successiva sostituzione delle batterie.Precisione di misura anche alle massime velocità. Display a caratteri grandi di facile lettura.

Range	25,4
Accuracy	Refer to the list of specifications (excluding quantizing error)
Digital step	0,01 мм
Scale	Capacitance type, ABSOLUTE linear encoder
Max. response speed	Unlimited

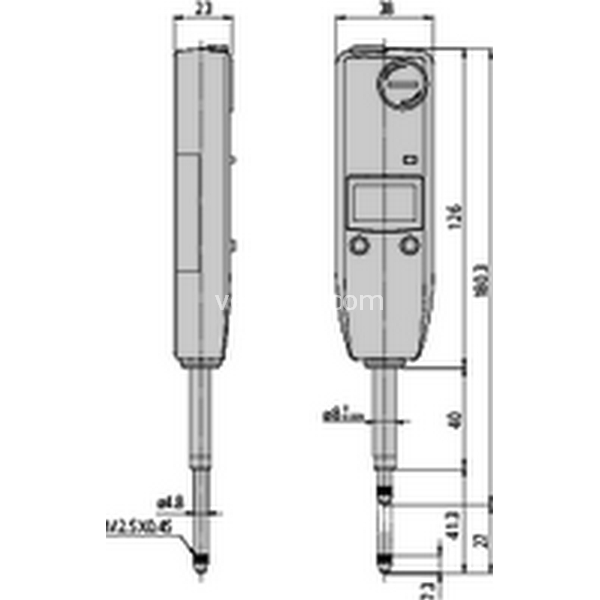

Stem Ø	8 mm
Contact point	Carbide ball, thread M 2.5 x 0.45 mm
Alarm	Low voltage, counting value composition error
Accuracy	0,02 mm
ORIGIN (ABS-Zero)	Yes
Digimatic data output	Yes
On/off	Yes
Measuring force	≤ 1,8
Inch-Metric	Metric
Power supply	1 battery SR-44
Battery life	approx. 20000 hours
Counting direction switchable	Yes
Measuring force	Display
LCD, character height 8.5 mm	Article Type
Product	Articlegroup
42	Articlegroup Subgroup
4200	Mass
140	relevant for catalog
International	Export-Web (1=yes)
1	Features
• with flatback. • Slim type digital indicator with a low price. • Large LCD and simple key operation. • The ID-U displays the absolute position of the spindle from the origin point at power-on. • Zero-setting is performed with the ORIGIN button, and this setting does not have to be repeated for the entire life of the battery, even after power-off. • Ideal for installation into measuring devices because of its compact design and long battery life. • The ABSOLUTE Encoder eliminates spindle over-speed error and prevents electrical noise interference errors. Conventional Digital Measurement Found image element but no 'oid' attribute set ABSOLUTE Digimatic Measurement Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting. Found image element but no 'oid' attribute set	Imes relevant (1=yes)
