368-004

MICROMETRO

Codice: N6110

Disponibilità: Non disponibile

Codice del produttore: 368-004

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€772,20

Scarica PDF

Descrizione

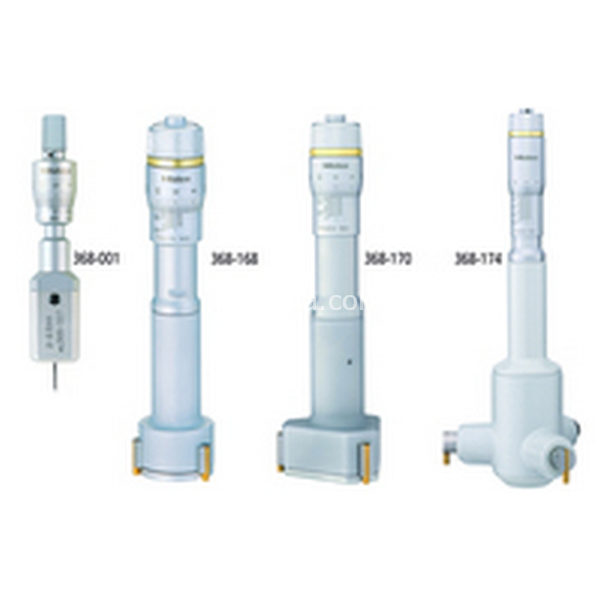

Micrometro per interni "Mini Holtest" 4-5 mm

Micrometri per interni a due o tre punte.Micrometri individuali.Contatti di misura rivestiti in titanio con eccellente durata e resistenza agli urti.I modelli a tre punte (campo > 6 mm) consentono misure stabili grazie al sistema di autocentratura su foroSenza prolunghe o anelli di riscontro.

Digital/Analog	Analog
Accuracy	2-20 mm : ±2 µm 20-100 mm : ±3 µm 100-300 mm : ±5 µm
Range	42830
Graduation	up to 12 mm: 0.001 mm over 12 mm: 0.005 mm
Spindle pitch	Spindle pitch 0,5 mm
Scale	Thimble and sleeve satin chrome finish, Up to 12 mm : ø 17 mm Over 12 mm : ø 23 mm
Measuring Surface/Pins	2 - 6 mm: carbide 6 - 12 mm: titanium coated tungsten carbide 12 - 300 mm: titanium coated hardened steel taper: tungsten carbide
Measuring spindle	Spindle pitch 0,5 mm
Measuring-surface material	2-6 mm : Carbide 6-300 mm : Titanium coating (1700-2000Hv)
Inch-Metric	Metric
Measuring method	2-6 mm : 2-point 6-300 mm : 3-point

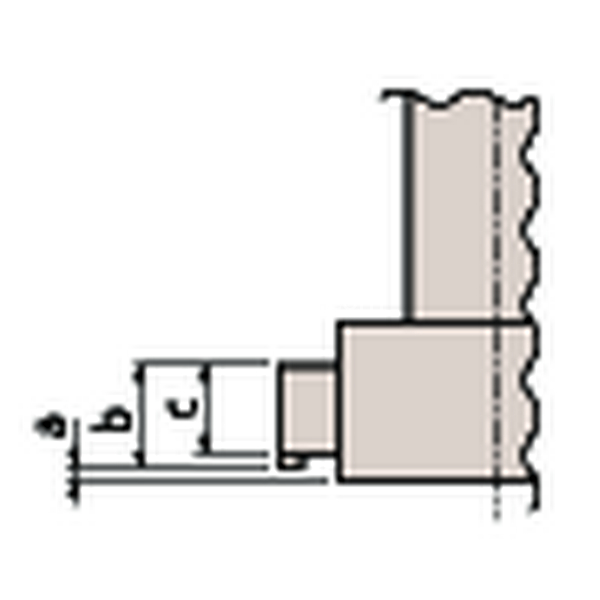

L1	22
L2	113-114
C	2
Delivered	Including box, key Measuring surfaces titanium-coated or carbide. Carbide taper and contact point.
Mass	91
Article Type	Product
Articlegroup	12
Articlegroup Subgroup	1200
relevant for catalog	International
Features	• Ratchet stop guarantees repeatable measurement. • Hardened steel contact faces • Steel setting rings are available (optional) for accurately setting the micrometer at points within the measuring range.
Imes relevant (1=yes)	1
