368-766

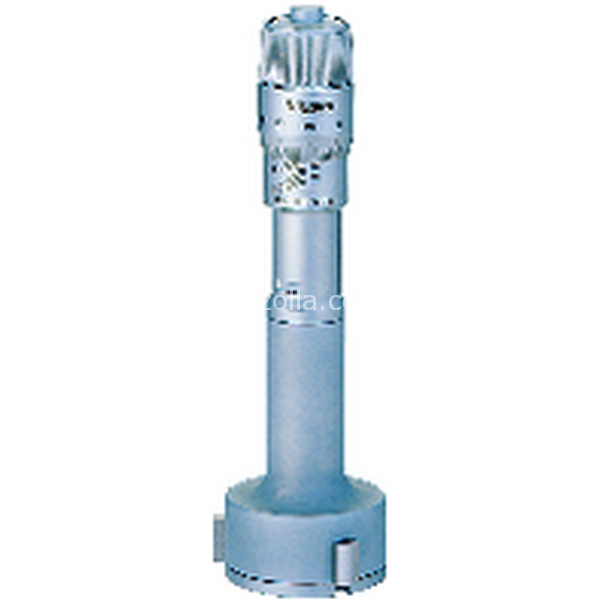

MICROMETRO A 3 PUNTE PER INTERNI 20-25MM

Codice: T8591

Disponibilità: Non disponibile

Codice del produttore: 368-766

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€353,70

HOLTEST HT2-25R 20-25MM

Versione baseIncudini e cono in acciaio temprato per misure affidabili.Modelli individuali senza prolunghe o anelli di riscontro.

Digital/Analog	Analog
Accuracy	12-20 mm : ±2 µm/0.0001" 20-100 mm : ±3 µm/0.00015" 100-300 mm : ±5 µm/0.00025"
Range	20-25
Graduation	0.005 mm
Scale	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm
Measuring surfaces	hardened steel Taper: hardened steel
Measuring spindle	Spindle pitch 0,5 mm
Inch-Metric	Metric
Depth without extension	90
Measuring method	3-point
L	94
A	3,4
B	5,2
Delivered	Including box, key, certificate of inspection
Mass	260
Article Type	Product
Articlegroup	12
Articlegroup Subgroup	1200
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Provides highly accurate three-point measurement of bore diamaters. • Measuring pins are spaced at 120å¡ for increased accuracy of measurement compared to traditional two point devices. • By turning the ratchet the Holtest automatically centres in the bore, which makes measurement fast and easy to perform without loss of precision.
Imes relevant (1=yes)	1
