CODICE LIBERO

MICROMETRO

Codice: AW751

Disponibilità: Non disponibile

Codice del produttore: 293-821-30

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€171,00

Scarica PDF

Descrizione

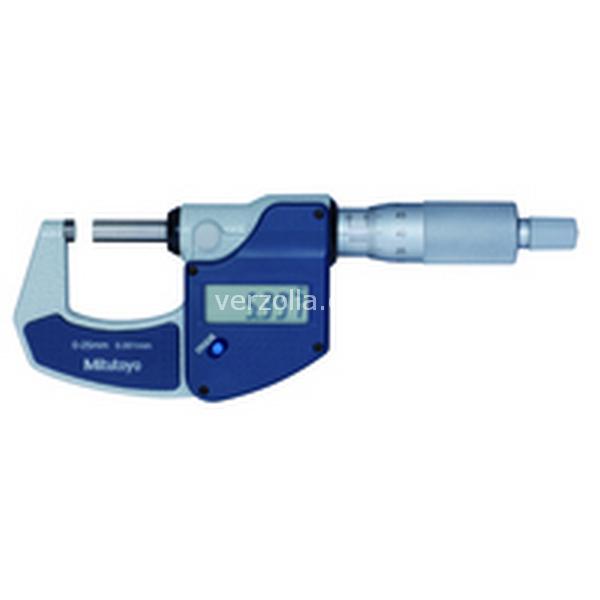

MICROMETRO DIGIMATIC MDC

Pratici modelli baseForniti di frizione per mantenere costante la forza di misuraSchermo LCD con caratteri di grandi dimensioniCon o senza uscita dati

Digital/Analog	Digital
Accuracy	Refer to the list of specifications (excluding quantizing error)
Range	0-25
Measuring force	42865
Digital step	0,001 mm / 0,001 mm/0.00005"
Scale	thimble and sleeve satin chrome finish, Ø 18 mm
Flatness	0,3 μm/0.000012”
Parallelism	2 μm/0.00008”
Measuring surfaces	carbide-tipped, precision ground, micro-lap finish
Measuring spindle	ø 6,35 mm, spindle pitch 0,5 mm
Origin	Yes
Auto Power OFFafter 20 min. non use	Yes
Low voltage alarm	Yes
Inch-Metric	Metric
Accuracy	±2
Functions	With ratchet stop
Battery life	approx. 2,4 years (approx. 8700 hours)
Delivered	Including box, key, 1 battery, with factory certificate
Mass	275
Article Type	Product
Articlegroup	13
Articlegroup Subgroup	1300
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Simply measures 0 through 25mm with resolution to 0.001mm.• Provided only with an origin-set button for easy origin setting.• A ratchet stop or friction thimble for a constant measuring force.• Measurement readout with large characters on the LCD screen.
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
