395-263-30

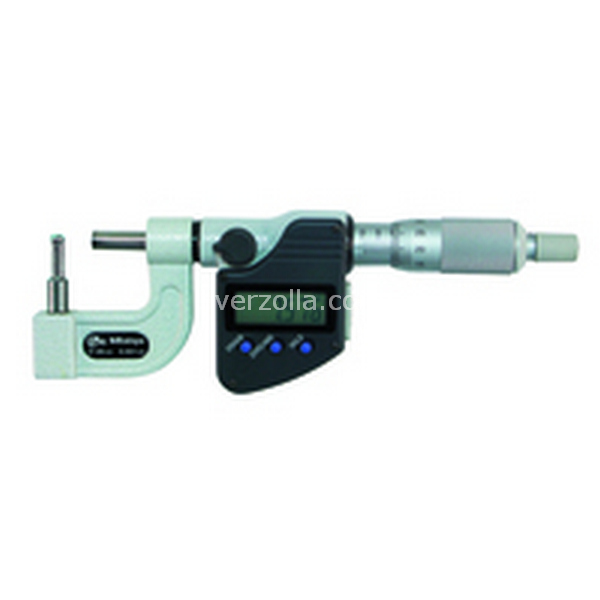

MICROMETRO IP65 EST.0-25MM

Codice: AY781

Disponibilità: Non disponibile

Codice del produttore: 395-263-30

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€599,40

MICROM.DIGITALE "IP65" 0

Per la misura di tutte le superfici curve e lo spessore di pareti di tubi, cuscinetti, anelli, etc.

Digital/Analog	Digital
Accuracy	Refer to the list of specifications (excluding quantizing error)
Range	0-25
Measuring force	42802
Digital step	0,001 mm / 0,001 mm/0.00005"
Graduation	0.01мм. .001" / .0001" (analog models)
Scale	Thimble and sleeve satin chrome finish, ø18 mm
Flatness	0,6 µm/0.000024"

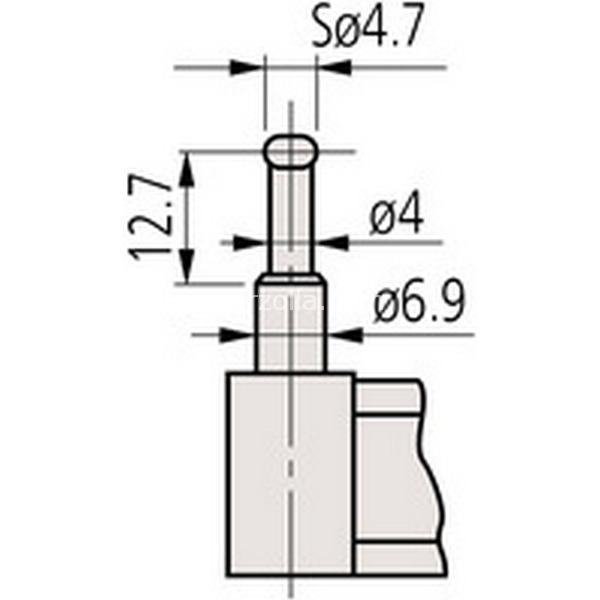

Anvil/ Tip	Type C
Measuring surfaces	Carbide tipped, micro-lap finish
Measuring spindle	ø6.35 mm, spindle pitch 0,5 mm, with spindle lock
Origin	Yes
Zero/abs	Yes
Auto Power OFFafter 20 min. non use	Yes
Low voltage alarm	Yes
Function lock	Yes
Inch-Metric	Metric
Data output	Yes
Accuracy	±3
HOLD	Yes
Battery life	approx. 2.4 years
L	12
D	4,8
Delivered	Including box, setting standard (from 25 mm upward), key, 1 battery
Mass	310
Article Type	Product
Articlegroup	13
Articlegroup Subgroup	1300
relevant for catalog	International
Export-Web (1=yes)	1
Imes relevant (1=yes)	1
