111-115

MICROMETRO PER ESTERNI 0-25 MM

Codice: I5941

Disponibilità: Non disponibile

Codice del produttore: 111-115

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€216,00

Scarica PDF

Descrizione

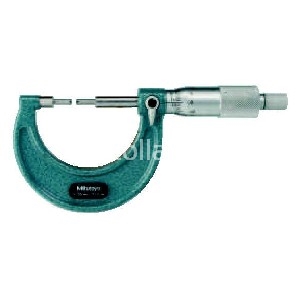

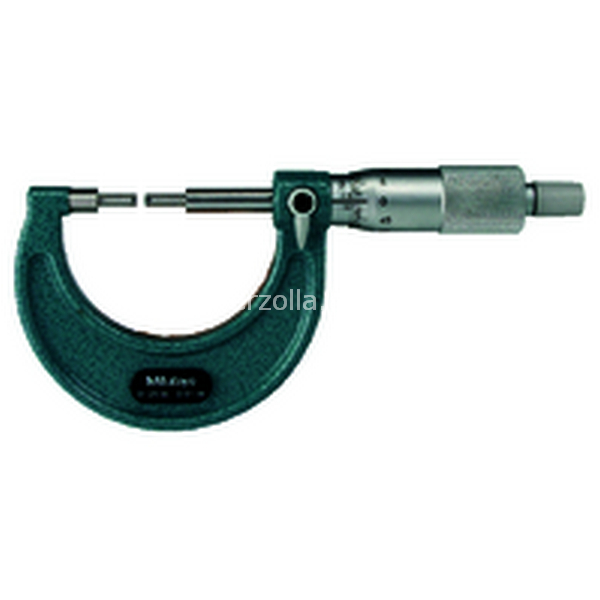

Micrometro per esterni 0-25 mm stelo ribassato

Dettagli

MICROMETRO ESTERNI 0-25

Micrometro con steli ribassati per misure in gole o in punti difficiliCon stelo ribassatoPer la misurazione di scanalature, alberi scanalati, incavi, parti formate, etc.

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	0-25
Measuring force	42865
Graduation	0.01 mm
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Flatness	0,3 µm/0.000012"
Parallelism	(2+L/100) μm, L = max. range (mm) [0.00008”+0.00004(L/4)]” L = max. range (inch)
Measuring surfaces	carbide-tipped, micro-lap finish, stepped
Anvil/ Tip	A
Measuring spindle	With spindle lock, Ø 6,35 mm, spindle pitch 0,5 mm
Inch-Metric	Metric
Accuracy	±3

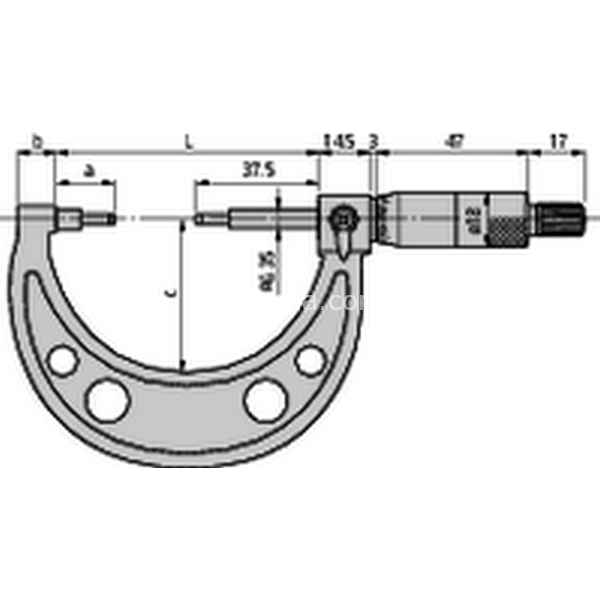

L	54,5
A	17,5
B	10
C	38
Delivered	Including box, setting standard (from 25 mm upward), key
Mass	205
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• The anvil and spindle have a small diameter for measuring splined shafts, slots, and keyways.• With Ratchet Stop for constant force.
Imes relevant (1=yes)	1
