118-102

MICROMETRO PER ESTERNI 0-25 MM

Codice: A1255

Disponibilità: Non disponibile

Codice del produttore: 118-102

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€246,60

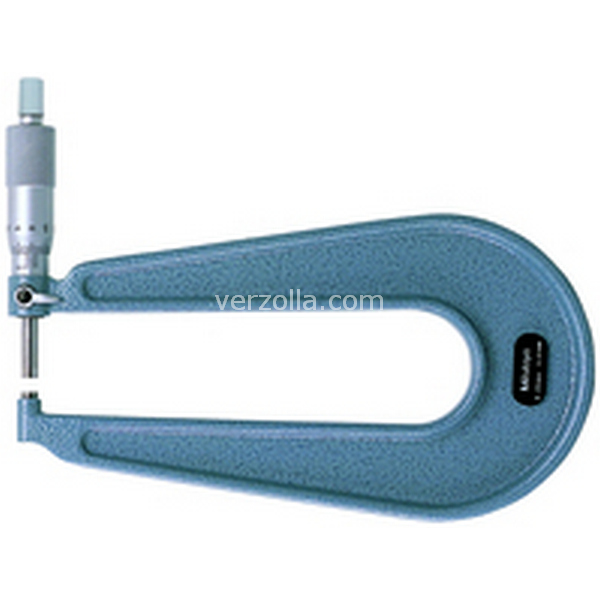

Micrometro per esterni 0-25 mm ad arco

Micrometro per esterni con gola profonda 0/25 mm

Con arco a gola profonda . Per misurazione di semilavorati, fogli metallici ecc..

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	0-25
Measuring force	42802
Graduation	0,01mm
Scale	Thimble and sleeve satin chrome finish, ø18 mm or ø21 mm
Flatness	0,6 µm for models with 110, 160, 165 mm throat 1 µm for models with 300 mm throat
Parallelism	3 µm

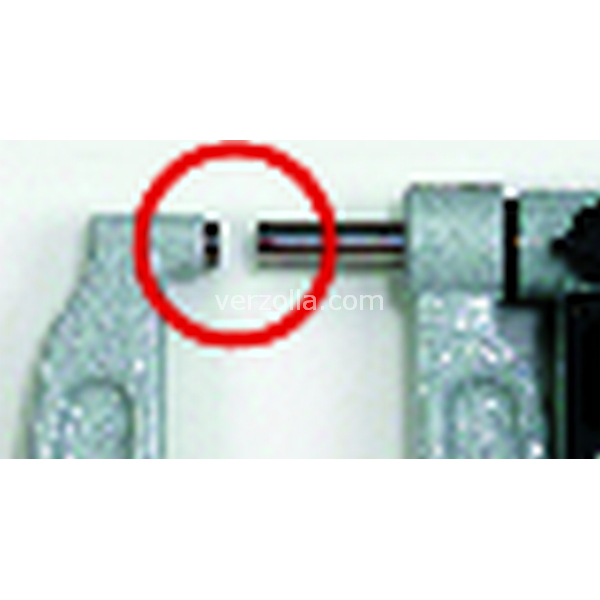

Measuring surfaces	Carbide-tipped, micro-lap finish
Anvil/ Tip	A
Measuring spindle	Throat depth up to 150 mm: Ø 6,35 mm Spindle pitch 0,5 mm, with spindle lock
Inch-Metric	Metric
Accuracy	±4
Measuring force	L
30,3	a
160	b
27,5	c
2,8	d
18	e
6,35	f
14,5	g
48	Delivered
Including box, key, setting standard (from 25 mm upward)	Mass
740	Article Type
Product	Articlegroup
10	Articlegroup Subgroup
1000	relevant for catalog
International	Export-Web (1=yes)
1	Features
• Measures thickness of sheet metal, and rubber parts.• With Ratchet Stop for constant force.	Imes relevant (1=yes)
