126-125

MICROMETRO PER ESTERNI 0-25 MM

Codice: A1258

Disponibilità: Non disponibile

Codice del produttore: 126-125

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€333,90

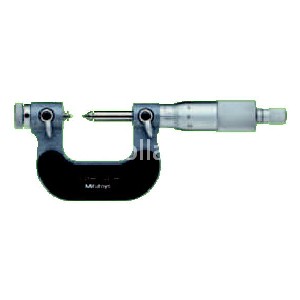

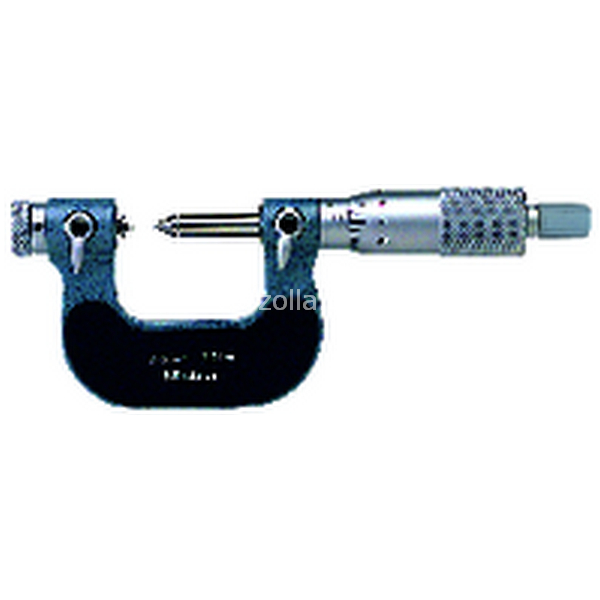

Micrometro per esterni 0-25 mm per filettature

MICROM.EST.PER FILETTI 0

Micrometri per filettiPer la misura del diametro medio del filetto.Consentono la misura di una ampia gamma di filetti metrici / unificati e Withworth

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	0-25
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Measuring force	42865
Graduation	0,01 mm
Measuring spindle	With spindle lock, ø 6,35 mm, spindle pitch 0.5 mm
Inch-Metric	Metric
Accuracy	±4
L	39,5
A	25
Delivered	Including box, setting standard (60°) (from 25 mm upward), key Interchangeable anvils/spindle tips not included
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
Mass	240
relevant for catalog	International
Export-Web (1=yes)	1

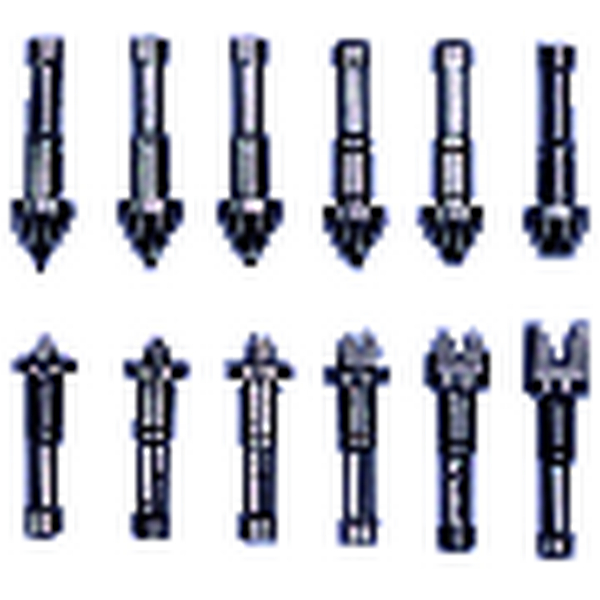

Features	• Optional anvils/spindle-tips (matching V and cone) for measuring Metric/Unified or Whitworth screw threads are available. These are made of special high-grade steel, hardened and precision ground.• With Ratchet Stop for constant force.
