115-115

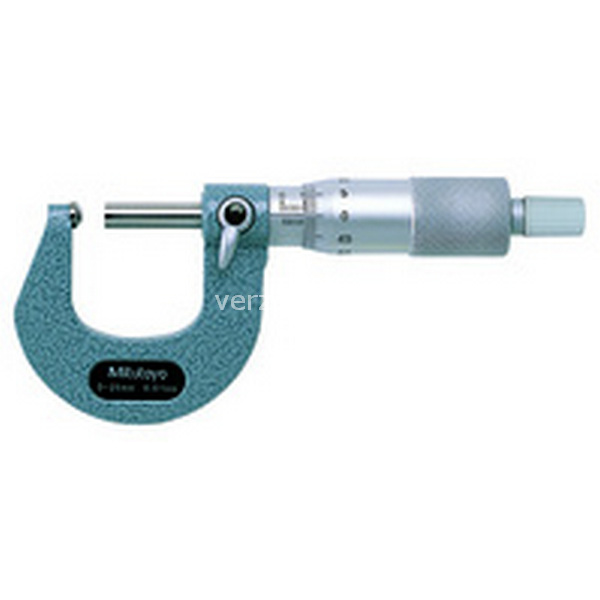

MICROMETRO PER ESTERNI 0-25MM

Codice: P6984

Disponibilità: Non disponibile

Codice del produttore: 115-115

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€159,30

MICROM.EST.0-25 SUPERF.C

Per la misura di tutte le superfici curve e spessori di pareti di tubi, cuscinetti, anelli, etc.

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	0-25
Graduation	0.01 mm
Remarks	Type E
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Flatness	0.6 µm/0.000024"
Measuring surfaces	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide tipped anvil: hardened steel (115-3xx)
Measuring spindle	With spindle lock, Ø 6.35 mm, spindle pitch 0.5 mm
Inch-Metric	Metric
Accuracy	±3
Functions	Model with spherical anvil
Measuring force	5-10 N/ 3-8 N (Type A, B, C, D)
D	10
Delivered	Including box, setting standard (from 25 mm upward), key
Mass	180
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Carbide-tipped anvil and spindle.• Ratchet stop for constant force.
Imes relevant (1=yes)	1
