114-102

MICROMETRO PER ESTERNI 10-25 MM

Codice: H1829

Disponibilità: Non disponibile

Codice del produttore: 114-102

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€428,40

Scarica PDF

Descrizione

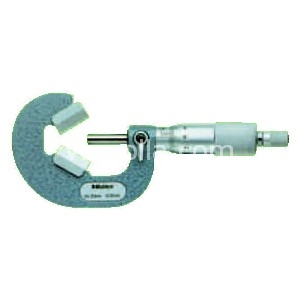

Micrometro per esterni 10–25 mm a prisma

Dettagli

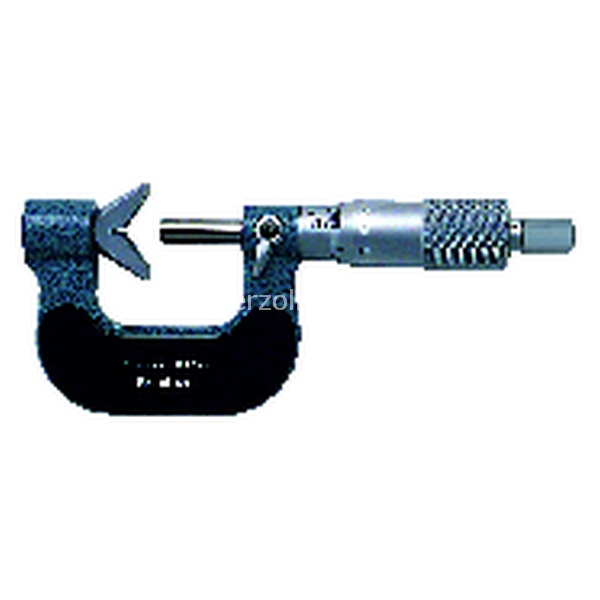

Micrometro con incudine a prisma con scanalature

Micrometro con incudine a V per la misura di utensili da taglio.Per la misura del diametro esterno di utensili a 3 o 5 taglienti.Disponibili modelli con incudine a V e scanalatura centrale per misurare il diametro primitivo di rubinetti con il metodo a filo singolo.

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	43033
Measuring force	42865
Graduation	0.01 mm
Remarks	with groove
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Flatness	0,6 µm (spindle) 1,3 µm (anvil)
Measuring surfaces	Prism angle 60°/108°
Measuring spindle	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Inch-Metric	Metric
Accuracy	±4
Functions	For 3-flute cutting tools (60°)
Setting standard	167-328 ø 10 mm
A	6,2
Delivered	Including box, setting standard, key
Mass	280
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.• With Ratchet Stop for constant force.• V-anvils with a centreline groove are available. These are useful for measuring pitch diameters of taps which have three or five flutes by using the single-wire method.
