115-303

MICROMETRO PER ESTERNI 25-50MM

Codice: W4673

Disponibilità: Non disponibile

Codice del produttore: 115-303

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€200,70

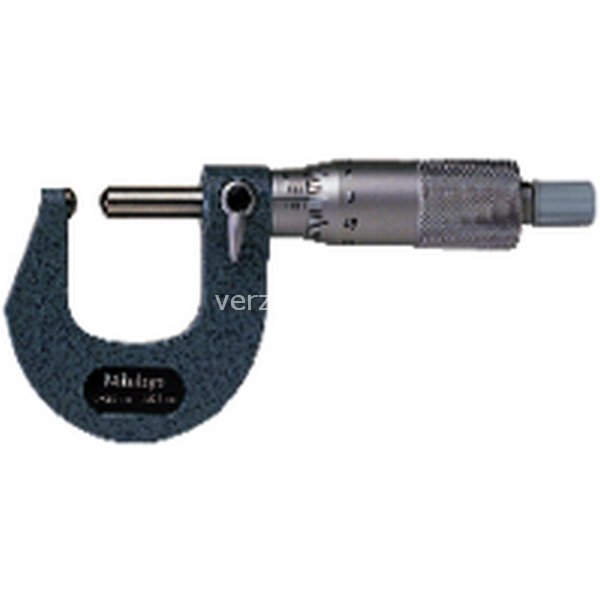

Micrometro per la misura di superfici curve Mod. A

Per la misura di tutte le superfici curve e spessori di pareti di tubi, cuscinetti, anelli, etc.

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	25-50
Graduation	0.01 mm
Remarks	Type A
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Flatness	0.6 µm/0.000024"
Measuring surfaces	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide tipped anvil: hardened steel (115-3xx)
Measuring spindle	With spindle lock, Ø 6.35 mm, spindle pitch 0.5 mm
Inch-Metric	Metric
Accuracy	±3
Functions	Modelle mit zylindrischem Amboss
Measuring force	5-10 N/ 3-8 N (Type A, B, C, D)
L	4
D	2
Delivered	Including box, setting standard (from 25 mm upward), key
Mass	240
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Ratchet stop for constant force.
