123-103

MICROMETRO PER ESTERNI 50-75 MM

Codice: B9084

Disponibilità: Non disponibile

Codice del produttore: 123-103

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€297,90

Scarica PDF

Descrizione

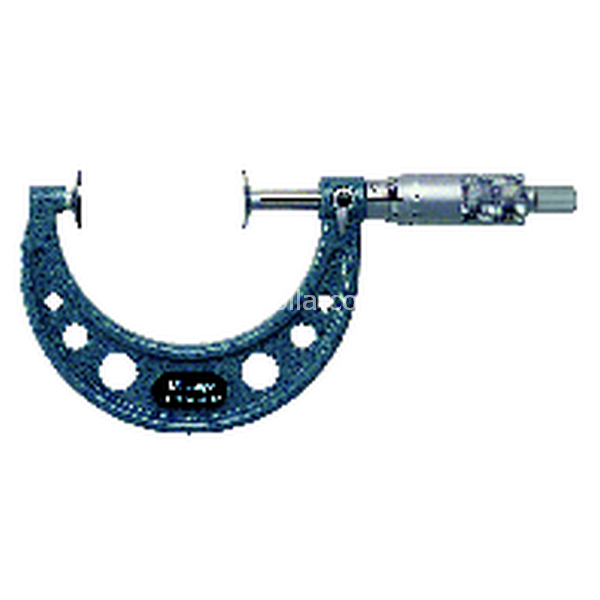

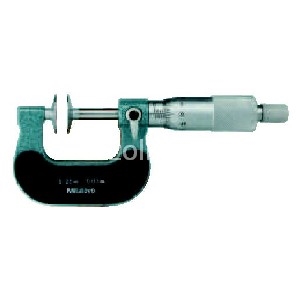

Micrometro per esterni 50-75 mm a disco

Dettagli

Micrometri a disco, dischi in acciaio temprato

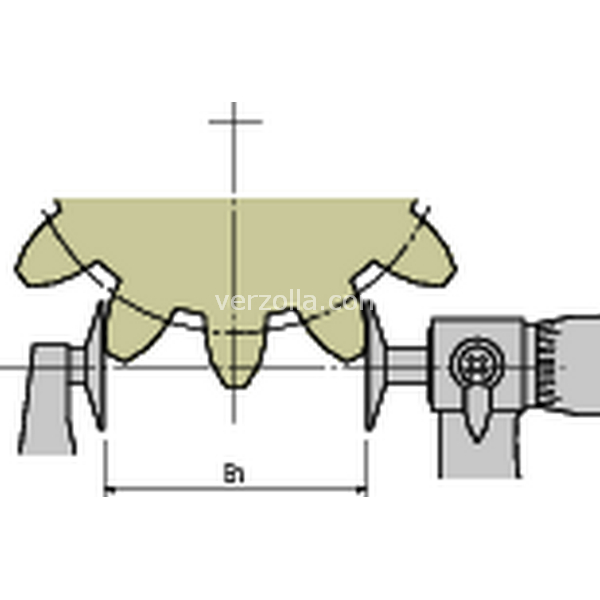

Micrometri con incudini a discoSuperfici di misura a disco per la misura di ingranaggi, modulo 0,5 - 6Utili nella misura in punti difficili da raggiungereStelo rotante

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	50-75
Measuring force	42865
Graduation	0.01 mm
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Flatness	1 µm/0.00004" for models up to 100 mm/4" 1,6 µm/0.000063" for models over 100 mm/4"
Parallelism	4 µm for models up to 50 mm 6 µm for models up to 100 mm (5+L/75) µm for models over 100 mm L = max. range (mm)
Measuring spindle	With spindle lock, spindle pitch 0.5 mm
Measurable module	0.5-6 (0.7-11 : models over 100 mm)
Inch-Metric	Metric
Accuracy	±6
L	87
A	5,5
B	11
C	49
E	8
D	20
T	0,7
Delivered	Including box, gauge block (from 25 mm upward), insulation, key
Mass	300
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Diameter of measuring disc: 20mm.• 0.7mm edge thickness to enter narrow recesses.• With Ratchet Stop for constant force.• Supplied with a setting standard.
