146-122

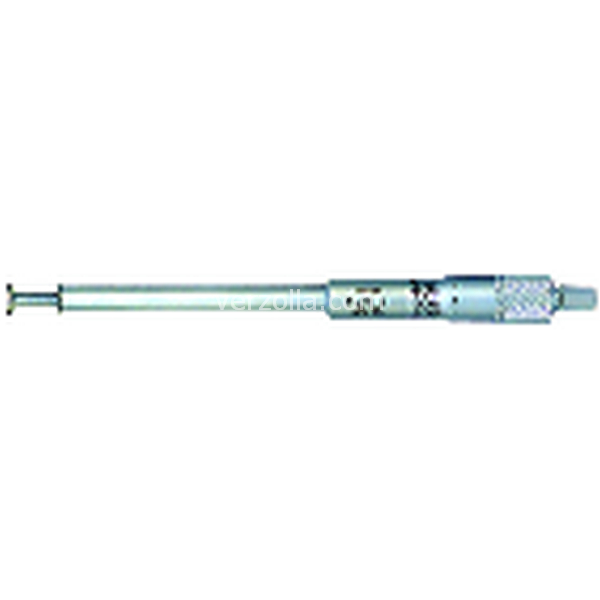

MICROMETRO PER SCANALATURE 0.25MM

Codice: T9839

Disponibilità: Non disponibile

Codice del produttore: 146-122

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Scarica PDF

Descrizione

MICROM.PER SCANALATURE 0

Micrometri per scanalatureModelli analogiciPer la misura interna di scanalature trasversali, gradini in fori, etc.Disponibili modelli con stelo non rotante

Digital/Analog	Analog
Accuracy	±10 µm/0,0004"
Measuring force	42865
Range Outside	0-25 mm
Range Inside	1.6-26.5 mm
Graduation	0,01
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Parallelism	10 µm
Diameter of measuring plate	12,7
Measuring surfaces	hardened
Measuring spindle	Spindle pitch 0,5 mm
Ratchet	Can be used in both directions
Inch-Metric	Metric
Functions	Rotating spindle type
L	103,3
L	25
Delivered	Including box, key
Mass	185
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1

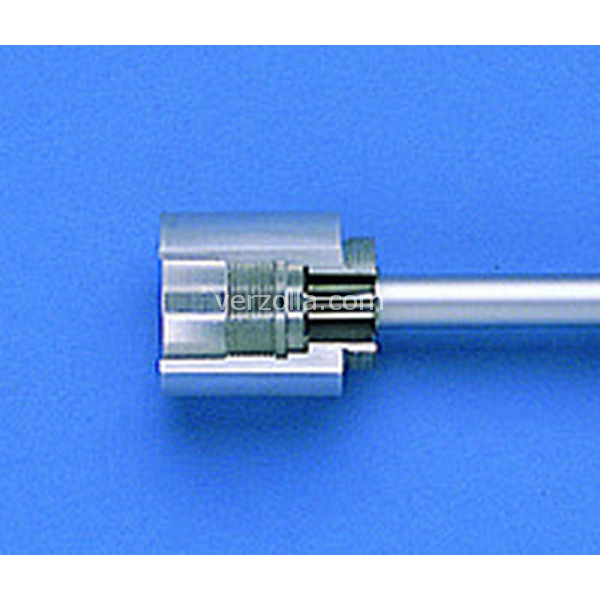

Features	• Flanged spindle for measuring width, depth, and location of grooves inside/ outside bores and tubes.• Provided with offset graduations for inside and outside measurements.• Non-rotating spindle type has two-directional ratchet stop.
Imes relevant (1=yes)	1
