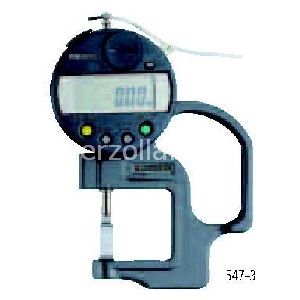

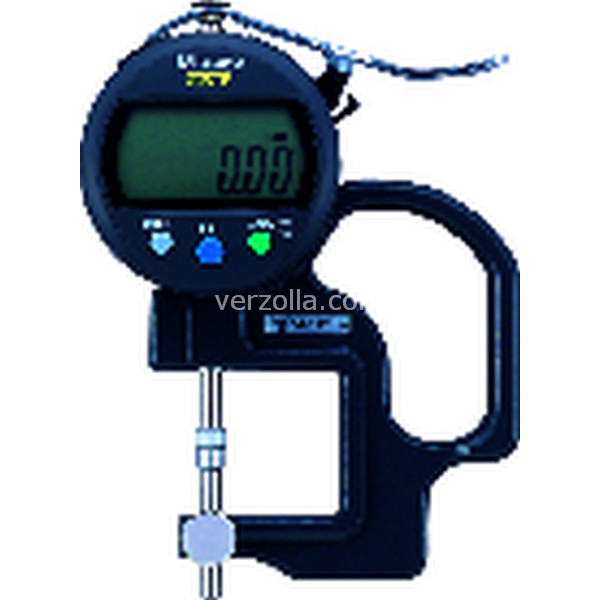

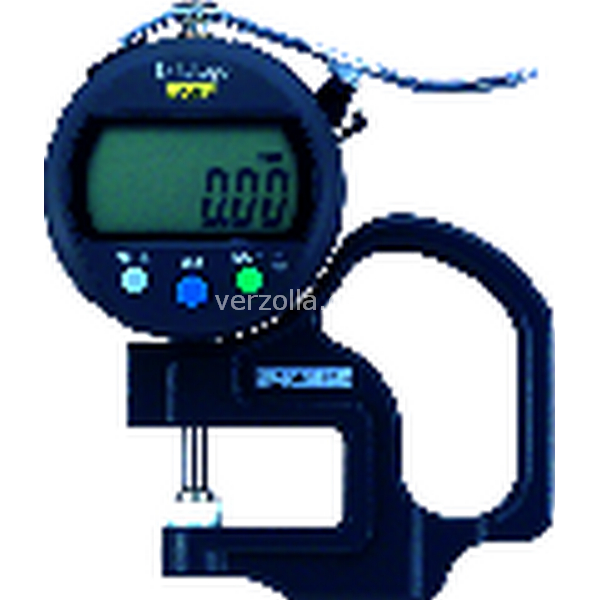

547-301

SPESSIMETRO DIGITALE

Codice: H9291

Disponibilità: Non disponibile

Codice del produttore: 547-301

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Spessimetro rapido Absolute Digimatic 0-10 mm ris.0,01

SPESSIMETRO RAPIDO ELETT

Accuracy	±10 µm (excluding quantizing error)
Range	0-10
Digital step	0,01 mm
Measuring force	≤ 1,5
Scale	Capacitance type ABSOLUTE linear encoder
Parallelism	≤ 5
Max. response speed	Unlimited
Contact point	M 2,5 x 0,45 mm (ISO/JIS type)
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Zero/abs	Yes
GO/±NG judgement	Yes
Digimatic data output	Yes
On/off	Yes
Data/hold	Yes
Lock function	Yes
Inch-Metric	Metric
Max. measuring depth	30
Power supply	1 battery SR-44
Type	Ceramic disc contact points
Preset	Yes
Functions	With indicator ID-C No. 543-400BS
Counting direction switchable	Yes
Calculation function	Yes
Battery life	approx. 7000 hours
Article Type	Product
Articlegroup	42
Articlegroup Subgroup	4200
Mass	255
relevant for catalog	International
Export-Web (1=yes)	1
Imes relevant (1=yes)	1
