SCHEDA ARTICOLO
Immagine di 547-401 Immagine di 547-401 Immagine di 547-401
Immagine di 547-401
Immagine di 547-401 Immagine di 547-401 Immagine di 547-401

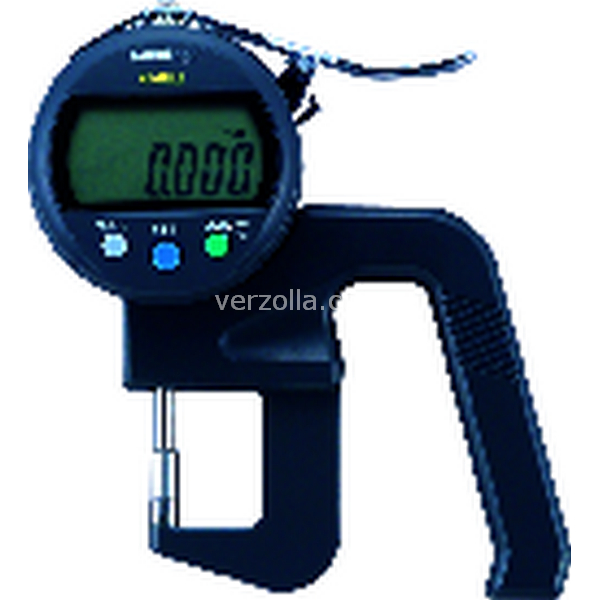

547-401

SPESSIMETRO DIGITALE
Codice: M5186
Disponibilità: Non disponibile
Codice del produttore: 547-401
Marca: MITUTOYO
Unità di misura: NR
Quantitativi ammessi: multipli di 1X
Da preventivare
Scarica PDF

Descrizione

Spessimetro rapido Absolute Digimatic 0-12 mm ris.0,001


Dettagli

SPESSIMETRO RAPIDO ELETT

Per la misura di film, carta, ecc.. con risoluzione 0,001 mm.

Accuracy±3 µm (excluding quantizing error)
Range0-12
Digital step0,01 mm/0,001 mm
Measuring force≤ 3,5
ScaleCapacitance type ABSOLUTE linear encoder
Parallelism3
Max. response speedUnlimited
Contact pointM 2,5 x 0,45 mm (ISO/JIS type)carbide tip
AlarmLow voltage, counting value composition error, overflow error, tolerance limit setting error
Zero/absYes
GO/±NG judgementYes
Digimatic data outputYes
On/offYes
Data/holdYes
Lock functionYes
Inch-MetricMetric
Indicator No.543-390BS (ID-C)
Max. measuring depth21
Power supply1 battery SR-44
PresetYes
Counting direction switchableYes
Calculation functionYes
Battery lifeapprox. 7000 hours
Article TypeProduct
Articlegroup42
Articlegroup Subgroup4200
Mass290
relevant for catalogInternational
Export-Web  (1=yes)1
Features• For measuring film, paper etc. with a resoultion of 0.001mm.  • Unique thickness gauge equipped with the ABSOLUTE DIGIMATIC Indicator IDC.  • The origin is set only once and is stored as the absolute origin until the battery is replaced.  • Measuring precision even at highest drive speed.  • Large display characters for easy reading.  • Lightweight construction.      Conventional Digital Measurement  Found image element but no 'oid' attribute set    ABSOLUTE Digimatic Measurement  Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting.  Found image element but no 'oid' attribute set
