164-163

TESTIN.MICROM.0-50MM

Codice: U9975

Disponibilità: Non disponibile

Codice del produttore: 164-163

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€857,70

Scarica PDF

Descrizione

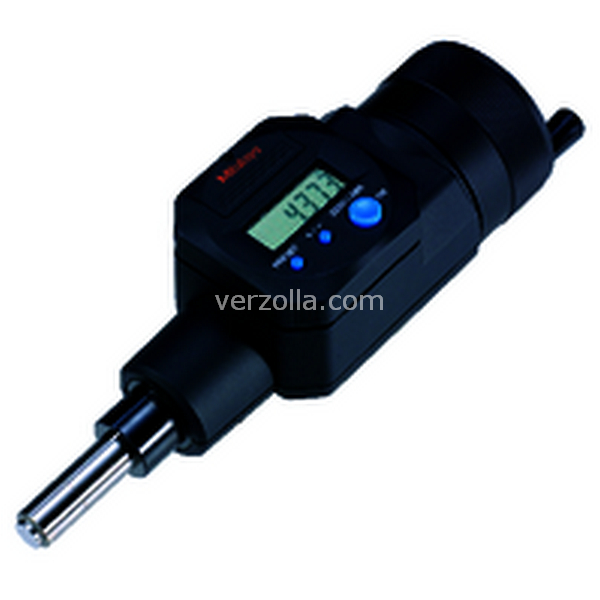

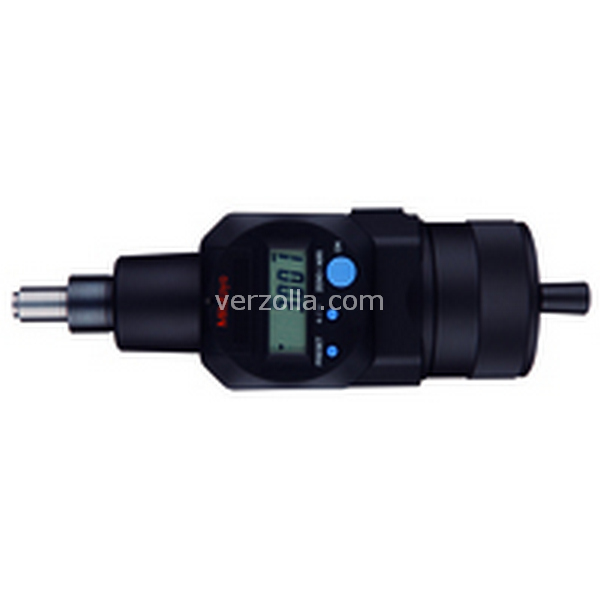

Testina micrometrica digitale

Testine micrometriche "DIGIMATIC“ Testina micrometrica digitale con stelo non rotante.L'unità display può essere ruotata di 330°Per integrazione in impianti di misura.

Digital/Analog	Digital
Accuracy	Refer to the list of specifications (excluding quantizing error)
Range	0-50
Digital step	0,001 mm
Remarks	Non-rotating spindle
Spindle end	Carbide tipped
Measuring surfaces	Hartmetallbestückt
Measuring spindle	spindle pitch 0.5 mm
Stem Ø	18 mm
Accuracy	±3 µm
Zero/abs	Yes
Auto Power OFFafter 20 min. non use	Yes
2 x PRESET	Yes
Display	LCD character height 7.5 mm
Inch-Metric	Metric
Power supply	2 batteries SR-44
Data output	Yes
Counting direction switchable	Yes
Battery life	approx. 1.8 years
Delivered	Including 2x Batteries
Article Type	Product
Articlegroup	13
Articlegroup Subgroup	1340
Mass	490
relevant for catalog	International
Export-Web (1=yes)	1
Features	• The display is rotatable to enable easy reading from practically any direction. This feature is especially useful in XY-table applications.• The Digimatic output port enables inclusion in a statistical process control or networked measurement system.• Origin point setting (ABS measurement system).• Zero setting.• Auto power ON/OFF.• Data output.• Error Alarm.
